RK3568 Android Motherboard Embedded Arm Board
Overview:
The large board of the intelligent industrial all-in-one machine adopts the Rockchip RK3568 quad-core chip solution.

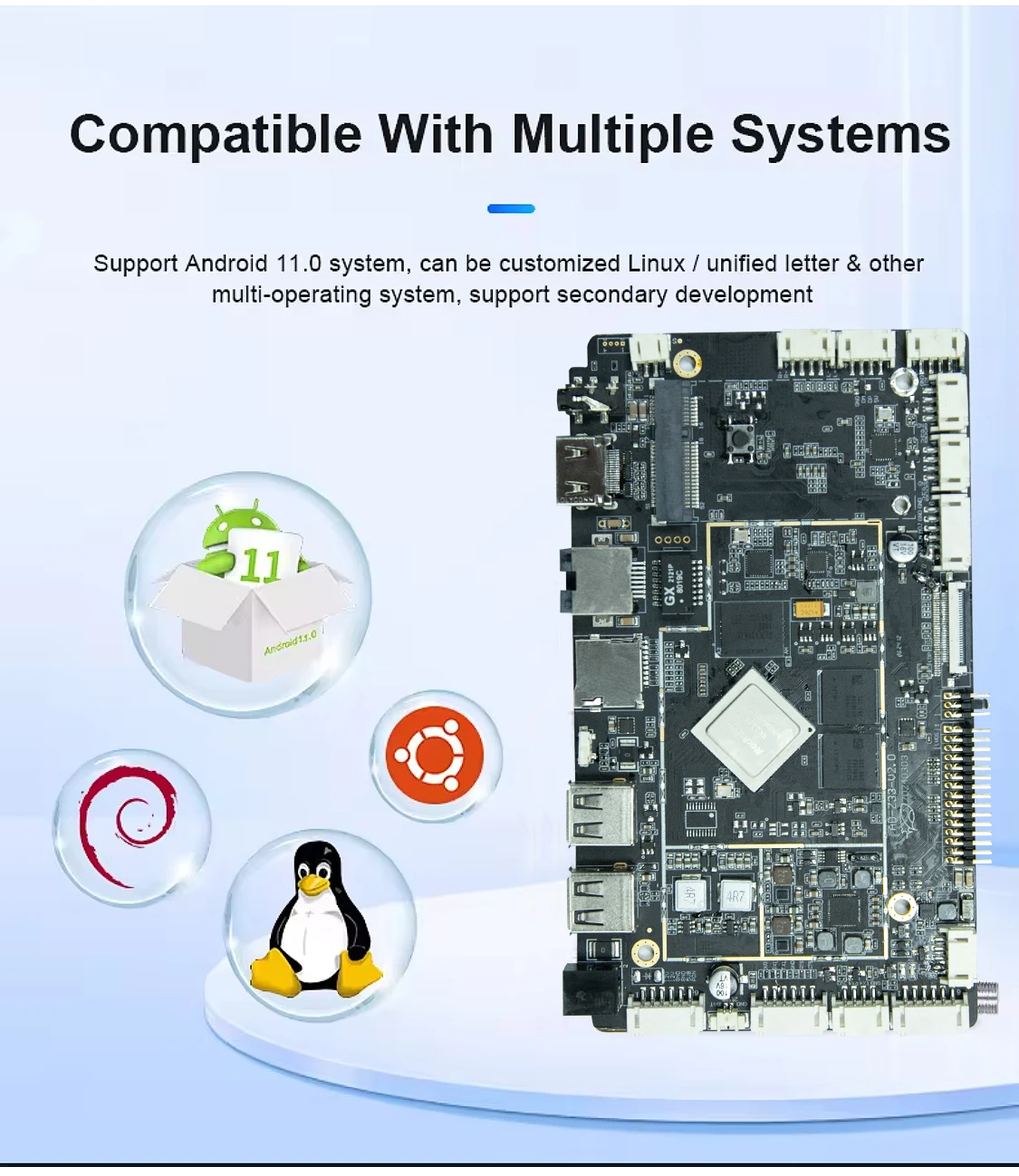

Support Android 11 system.
Enhanced power management circuit. Support commonly used external devices.
Rich interfaces and stable performance.
Suitable for intelligent remote network control: equipment such as industrial, medical, large advertising machines,educational video terminals and other equipment.
Characteristic:
1, Support 7-inch to 84-inch various LVDS interface displays (point-to-pointfull HD display 1920*1080).
2, Support EDP interface display screen.
3, Support MIPI interface display screen.
4, Multiple network interfaces: Ethernet, wireless Wifi, Bluetooth, 4G.
5, Multiple interactive mode interfaces: capacitive touch, infrared touch,
infrared remote control, USB keyboard and mouse, multi-point optical
touch.
6, Multi-channel USB interface, serial port.
7, Strong anti-electromagnetic interference and electromagnetic
compatibility
| CPU | Rockchip RK3568 quad-core 64-bit Cortex-A55, GPU Mali-G52 |
| Main frequency | Up to 2.0 GHz |
| RAM | DDR4 2G/4G optional |
| Built-in storage capacity | EMMC 8GB/16G/32G/64G optional (label 16GB) |

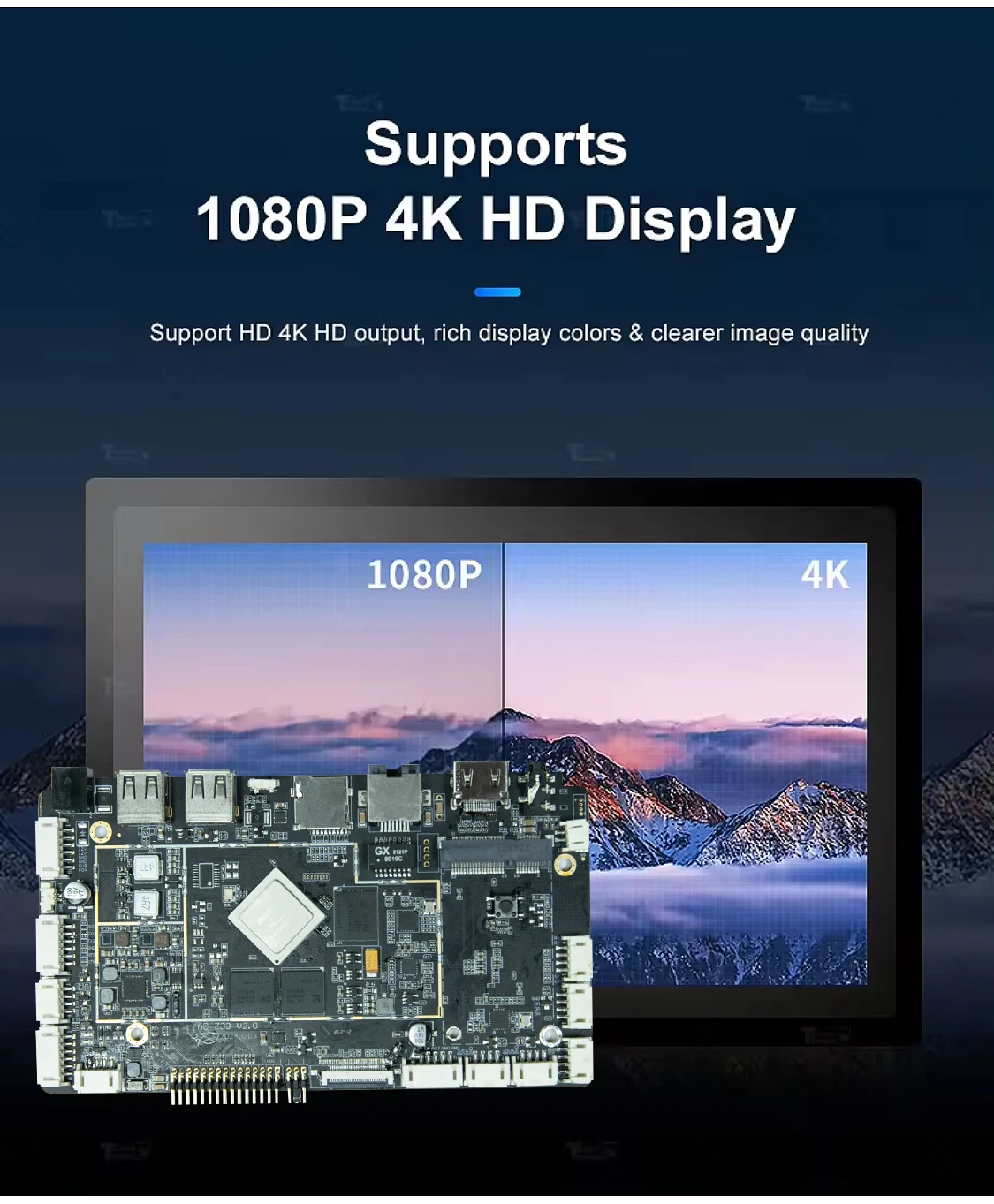

| Display interface | LVDS interface (single-channel, 6-bit dual-channel, 8-bit dual-channel). Support maximum resolution 1920x1080, support 7"-84" display |
| MIPI interface |
| EDP interface |
| Screen voltage | Support 3.3V/5V/12V optional |
| Touch screen | Provide I2C interface (can support multi-point resistive touch, multi-point capacitive touch).
Support USB multi-point infrared touch, multi-point acoustic wave touch, multi-point optical touch. |
| The internet | With RJ45 interface, support 10/100/1000M Ethernet. |
| Equipped with Wifi&BT module, supporting Wi-Fi 802.11b/g/n protocol. Support BT5.2 |
| Image rotation | Support 0 degree, 90 degree, 180 degree, 270 degree manual/auto rotation, support gravity sensor function |
| Real Time Clock | External real-time clock power supply battery |
| Interface device | Support MIPI interface camera, up to 500W pixels |
| 4 USB HOST, 1 USB OTG (support usb camera@500W usb printer, U disk, mouse, keyboard, standard usb peripherals) |
| 3 groups of serial ports. Support external serial device module (NFC module, printer, card reader, etc.) |
| TF card, maximum support 32GB |
| Class D power amplifier: 3W*2 8 ohms, support microphone |
| HD 2.0 output |
| Audio | MP3, WMA, WAV, APE, FLAC, AAC, OGG, M4A, 3GPP format |
| Video | Support 4K 60fps H.265/H.264/VP9 video decoding. Support 1080P 100fps H.265/H.264 video encoding. Support 8M ISP, support HDR. |
| Picture | Support JPG, BMP, PNG and other image format browsing and support rotation/slide show/picture zoom function |
| Power Adapter | Input: AC100-240V.50-60HZ, output: DC12V 3A |
WELCOME TO INQUIRY US ANY TIME. THANKS IN ADVANCE!
Service:
1. PCBA design
2. Housing design
3. Software and hardware customization
4. Logo print on housing
5. Software customization: Booting image, Boot animation,UI, Launcher, APP, Function
6. Good quality products
7. full after-sales service with technology support
8.100% QC check before shipping
About Sunchip
Established in 2012, Shenzhen Sunchip Technology Co., Ltd. is a comprehensive enterprise integrating design, research, development and production in digital consumer electronics products and solution provider. Our factory is located in Baoan district, Shenzhen city, near with Baoan International airport, which has more than 3200 square meters of standardized office base.
Our company has been committed to the R and D and innovation in the field of digital electronics, complete and scientific quality management system and professional R&D team, strong product research and development, production capacity and perfect service system, make the company always keep the lead in the related fields. We regards quality as life and already passed ISO international quality system certification ISO9001/ MFi / CE / RoHs / FCC.From raw materials procurement, product production, testing, packaging, marketing and so on each link are carried out in strict accordance with the national standard quality.
Sunchip has a over 80 research and development engineers team,high efficiency sales team and competitive price superiority, and attract customers from all over the world, we export to over 40 countries, including USA, UK, Germany, Italy, Japan,Korea, Turkey, Russia, Mexico, Brazil, Thailand ,Middle east and South Africa. Our sales team attends major exhibitions every year to close the distance with customers. Based on the principle of customer first, sales engineers have assisted customers to complete many projects, which are well received by customers. We are looking forward to cooperating, growing and developing with you sincerely.
1.Packing: carton box or wood case 2.Payment methods: accept T/T,Western Union,Paypal and Cash.
3.RMA Policy: customer bear all
the freight and duty charge to factory,and the factory afford return freight charge.
4.Warranty: 12 months warranty. Paid
maintenance over 12 months.
5.Remark: ROHS, CE & FCC certificates in e-file format are available.
6.MOQ: 1pc, sample order are welcome for your evaluation.
